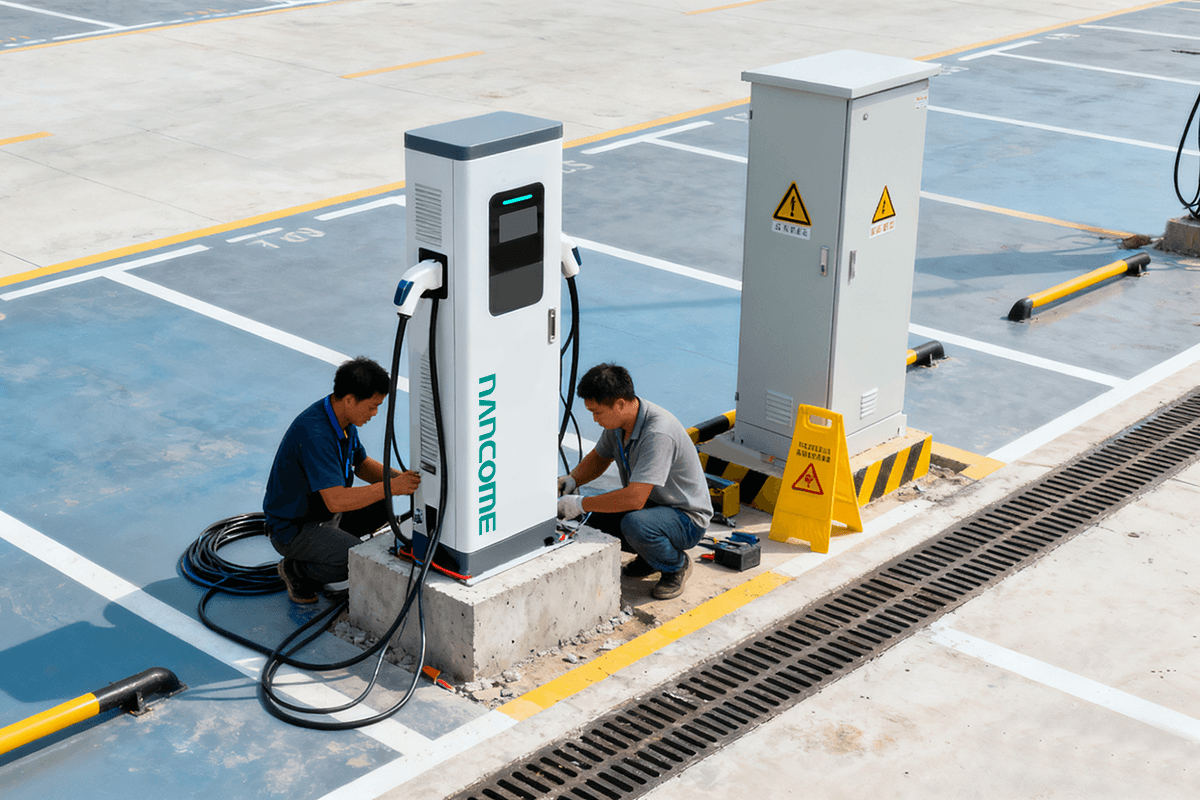

Installation Preparation Guide for EV Fast Chargers and Commercial Charging Stations

1. Understanding the Basics of EV Fast Charger Installation

Before setting up an ev fast charger, proper site preparation and electrical planning are essential to ensure long-term safety and efficiency. Modern ev fast charger floor‑standing and ev fast charger pedestal designs require stable foundations, robust wiring, and environmental protection. The installation process involves multiple considerations, from power capacity and grounding to drainage, ventilation, and layout planning.
As a general rule, the main distribution board should be equipped with circuit breakers and cables rated at 125% of the continuous load. For long cable runs, increase conductor size to minimize voltage drop. This ensures the ev fast charger unit operates reliably under sustained loads and peak demands.

2. Site Layout and Environmental Requirements

The ev charging station for parking lot must be positioned in centralized, easily accessible locations, ideally close to existing electrical infrastructure while avoiding main pedestrian or vehicle traffic zones. Each ev fast charger IP54 or higher enclosure ensures resistance against dust and rain, allowing safe installation both indoors and outdoors.
• Drainage & Flood Protection: For outdoor or low-lying areas, proper waterproofing and drainage (such as sump pits or rainwater channels) prevent water accumulation beneath the chargers.
• Foundations & Anchoring.The ev charging station floor‑standing models require reinforced concrete bases with embedded anchor bolts and protective bollards to safeguard against vehicle impacts.
• Safety Distance: Maintain at least 0.4 m clearance between the charger’s outer edge and the parking space boundary to ensure safety and service accessibility.
• Ventilation: DC chargers generate significant heat; thus, adequate airflow is critical to prevent overheating and extend equipment life.

3. Electrical Configuration and Power Supply

For stable operation, ensure access to a reliable 380–480 V AC power supply depending on local standards. The following examples show recommended setups:

Power and communication cables should be laid separately, with at least 30% spare conduit capacity for future upgrades. For outdoor ev charging station pedestal installations, waterproof conduits or underground trenches with pull boxes at bends are recommended.

4. Safety, Marking, and Operational Preparation

Before commissioning the charger, verify that:
• All electrical connections are torqued to manufacturer specifications.
• Fire extinguishers (CO₂ or dry powder) and safety signage are in place.
• Parking markings indicate “No Reverse Parking” and “Charging Vehicles Only.”
• Lighting and surveillance coverage meet local safety standards.
An ev charging station located in public or semi-public areas should also integrate access control and surveillance systems for operational security. For higher-powered systems (120 kW), allocate at least 4 m² of installation space per charger.

5. Conclusion

Whether deploying a floor-standing ev fast charger in a commercial hub or a pedestal-mounted ev charging station in a public parking lot, proper preparation is key to performance and safety. Attention to details—such as IP54 weatherproofing, correct circuit breaker sizing, grounding, and drainage—ensures that every ev charging station operates efficiently and reliably for years. By following these best practices, operators not only comply with installation standards but also enhance user experience, extend equipment life, and reinforce the credibility of their charging infrastructure.
